Cable connector tool Aviation plug SF610P Support samples

Short Description:

Aviation Connector, IP610P Counpling:Push-pull,Shell material:Brass with chrome plating,Insert material: PPS max temperature 260℃,Contact material:Brass with gold plating,Termination:Solder,Cable outer diameter diameter range:3-4mm,IP rating:IP44/IP67,Mating cycle:500,Temperature range:-40℃~+85℃，Insulation resistance:2000MΩ,Mate with SF611,SF612
Widely used in various machine tools, locomotives, electricity, post and telecommunications, communications, navigation, instrumentation, lighting systems, medical and oil exploration and other fields.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us Download as PDF

Product Detail

Product Tags

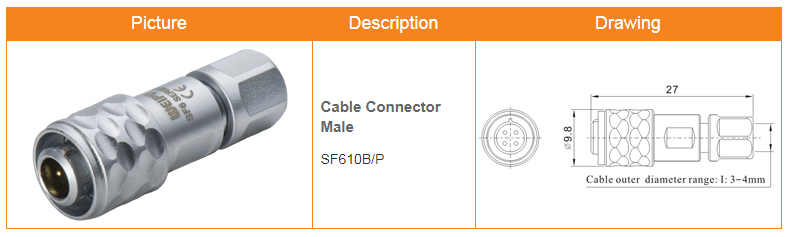

SF610P

Cable connector
Mate with SF611, SF612
SF610/P_ _

In-line cable connector
Mate with SF610
SF611/S_ _

Rear-nut mount
Mate with SF610
SF612/S_ _

Cable connector
Mate with SF611, SF612
SF610/S_ _
①②

In-line cable connector
Mate with SF610
SF611/P_ _

Rear-nut mount
Mate with SF610
SF612/P_ _
③

①Number of contact
②Cable outer diameter:Ⅰ:3-4mm
③ Number of contact

Material and spec

Material	Metal
IP Rating	IP67
Coupling Type	Push and Pull
Termination	Solder , Screw , Crimp ,
Shell	Brass with chrome plating
Insert material	PPS, max temperature 260℃
Contact material	Brass with gold plating
Termination	Solder/Screw/Crimp
Cable outer diameter range	I: 8-12mm
Mating cycle	> 500
Temperature range	-40℃~+85℃
Insulation resistance MΩ	2000

Contact arrangement and spec for solder termination

Number of contact	2	3	4	5
Male contact face view			.
Rated current (A)	3	3	3	3
Contact diameter(mm)	0.6	0.6	0.6	0.6
Rated voltage(AC.V)	30	30	30	30
Test voltage(AC.V)1 min	500	500	500	500
Contact resistance (mΩ)	10	10	10	10
Wire size (mm² /AWG)	≤0.5/20	≤0.5/20	≤0.5/20	≤0.5/20
