![1上3下:大](https://i4353.quanqiusou.cn/uploads/9516bcc23.png)
![j1 (3)](/uploads/bb6f81e8.png)
Rear-nut mount

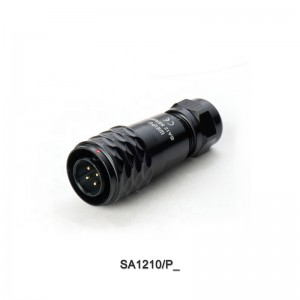

Mate with SA1210
SA1212/S_ _
![1上3下:大](https://i4353.quanqiusou.cn/uploads/9516bcc23.png)
![j1 (8)](https://i4353.quanqiusou.cn/uploads/5ebb69d5.png)

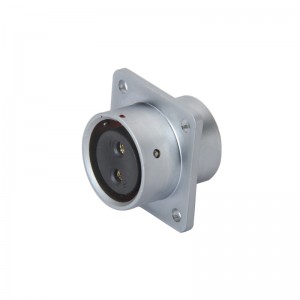

Square flange
Mate with SA1210
SA1213/P_ _
④⑤
①Number of contact
②Cable outer diameter:Ⅰ:4-6.5mm,Ⅱ:5-8mm
②Colour:
B:Black
S:Silver
L:Blue (special order)
G:Green(special order)
R:Red (special order)
④ Number of contact
⑤Colour:
B:Black
S:Silver
L:Blue (special order)
G:Green(special order)
R:Red (special order)
Material and spec
Material | Metal |
IP Rating | IP67 |
Coupling Type | Push and Pull |
Termination | Solder |
Shell | Anodized aluminium |
Insert material | PPS, max temperature 260℃ |
Contact material | Brass with gold plating |
Termination | Solder |
Cable outer diameter range | Ⅰ: 4-6.5mm Ⅱ: 5-8mm |
Mating cycle | > 500 |
Temperature range | -40℃~+85℃ |
Insulation resistance MΩ | 2000 |
Number of contact |
2 |
3 |
4 |
5 |
6 |
7 |
9 |
Male contact face view |
|
|
|
|
|
|
|
Rated current (A) |
13 |
13 |
5 |
5 |
5 |
5 |
3 |
Contact diameter(mm) |
1.6 |
1.6 |
1 |
1 |
1 |
1 |
0.7 |
Rated voltage(AC.V) |
250 |
250 |
200 |
180 |
125 |
125 |
125 |
Test voltage(AC.V)1 min |
1500 |
1500 |
1500 |
1000 |
1000 |
1000 |
1000 |
Contact resistance (mΩ) |
2 |
2 |
5 |
5 |
5 |
5 |
10 |
Wire size (mm² /AWG) |
≤2/14 |
≤2/14 |
≤0.785/18 |
≤0.785/18 |
≤0.785/18 |
≤0.785/18 |
≤0.785/18 |
①C:with cap N:without cap
②Cable outer diameter:Ⅰ:4-6.5mm Ⅱ:5-8mm
③Number of contact:2.3.4.5.6.7.9
④ C:with cap N:without cap
⑤ Number of contact:2.3.4.5.6.7.9
Material and spec
Material | Plastic |
IP Rating | IP67 |
Coupling Type | Bayonet Coupling |
Shell | Nylon66,fire resistance:V-0 |
Insert material | PPS max temperature 260℃,fire resistance:V-0 |
Contact material | Brass with gold plating |
Termination | Solder |
Cable outer diameter range | Ⅰ: 4-6.5mm Ⅱ: 5-8mm |
Mating cycle | > 500 |
Temperature range | -25℃~+85℃ |
Insulation resistance MΩ | 2000 |
Material | Plastic |
Contact arrangement and spec for solder termination
Number of contact |
2 |
3 |
4 |
5 |
6 |
7 |
9 |
Male contact face view |
|
|
|
|
|
|
|
Rated current (A) |
13A |
13A |
5A |
5A |
5A |
5A |
3A |
Contact diameter |
∅ 1.6×2 |
∅ 1.6×3 |
∅ 1×4 |
∅ 1×5 |
∅ 1×6 |
∅ 1×7 |
∅ 0.7×9 |
Rated voltage(AC.V) |
250V |
250V |
200V |
180V |
125V |
125V |
125V |
Test voltage(AC.V)1 min |
1500V |
1500V |
1500V |
1000V |
1000V |
1000V |
1000V |
Contact resistance mΩ |
2 |
2 |
5 |
5 |
5 |
5 |
10 |
Wire size mm² /AWG |
≤2/14 |
≤2/14 |
≤0.785/18 |
≤0.785/18 |
≤0.785/18 |
≤0.785/18 |
≤0.785/18 |
-
