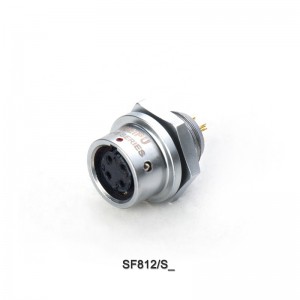

①Number of contact
②1: solder. 3: crimp
③Cable outer diameter:Ⅰ:5-8mm,Ⅱ:8-12mm
④ Number of contact
⑤ 1: solder. 3: crimp
Material and spec
| Material | Metal |
| IP Rating | IP67 |
| Coupling Type | Push and Pull |
| Termination | Solder , Screw , Crimp , |
| Shell | Brass with chrome plating |
| Insert material | PPS, max temperature 260℃ |
| Contact material | Brass with gold plating |
| Termination | Solder/Screw/Crimp |
| Cable outer diameter range | I: 8-12mm |
| Mating cycle | > 500 |
| Temperature range | -40℃~+85℃ |
| Insulation resistance MΩ | 2000 |
Contact arrangement and spec for solder termination
|
Number of contact |
2 |
3 |
4 |
5 |
6 |
7 |
9 |
|
Male contact face view |
|
|
|
|
|
|
|
|
Rated current (A) |
13A |
13A |
5A |
5A |
5A |
5A |
3A |
|
Contact diameter |
|
|
|
|
|
|
|
|
Rated voltage(AC.V) |
250V |
250V |
200V |
180V |
125V |
125V |
125V |
|
Test voltage(AC.V)1 min |
1500V |
1500V |
1500V |
1000V |
1000V |
1000V |
1000V |
|
Contact resistance mΩ |
2 |
2 |
5 |
5 |
5 |
5 |
10 |
|
Wire size mm² /AWG |
≤2/14 |
≤2/14 |
≤0.785/18 |
≤0.785/18 |
≤0.785/18 |
≤0.785/18 |
≤0.785/18 |
1.6×2Crimp contact arrangement and spec
|
Number of contact |
2 |
3 |
4 |
|
Male contact face view |
|
|
|
|
Rated current (A) |
10 |
10 |
5 |
|
Contact diameter(mm) |
1.5 |
1.5 |
1 |
|
Rated voltage(AC.V) |
500 |
500 |
400 |
|
Test voltage(AC.V)1 min |
1500 |
1500 |
1200 |
|
Contact resistance (mΩ) |
2.5 |
2.5 |
5 |
|
Insulation resistance (MΩ) |
2000 |
2000 |
2000 |
