①C:with cap N:without cap
②1:solder 3:crimp
③Number of contact:2.3.4.5.6.7.9
④ C:with cap N:without cap
⑤ 1:solder 3:crimp
⑥ Number of contact:2.3.4.5.6.7.9

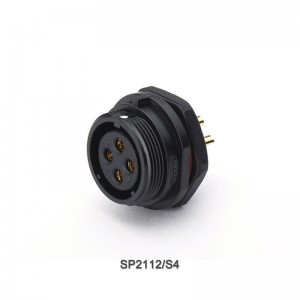

Plastic cover IP68
Material and spec
| Material | Plastic |
| IP Rating | IP68 |
| Coupling Type | Threaded coupling |
| Termination | Solder |
| Shell | Nylon66, fire resistance: V-0 |
| Insert material | PPS max temperature 260℃，fire resistance:V-0 |
| Contact material | Brass with gold plating |
| Termination | Solder |
| Cable outer diameter range | Ⅰ: 4-6.5mm |
| Mating cycle | > 500 |
| Temperature range | -40℃~+85℃ |
| Insulation resistance MΩ | 2000 |
Contact arrangement and spec for solder termination
|
Number of contact |
2 |
3 |
4 |
5 |
7 |
9 |
10 |
|
Male contact face view |
|
|
|
|
|
|
|
|
Rated current (A) |
10A |
10A |
5A |
5A |
5A |
5A |
5A |
|
Contact diameter |
|
|
|
|
|
|
|
|
Rated voltage(AC.V) |
500V |
500V |
500V |
500V |
400V |
400V |
400V |
|
Test voltage(AC.V)1 min |
1500V |
1500V |
1500V |
1500V |
1200V |
1200V |
1200V |
|
Contact resistance mΩ |
2.5 |
2.5 |
5 |
5 |
5 |
5 |
5 |
|
Wire size mm² /AWG |
≤2/14 |
≤2/14 |
≤0.785/18 |
≤0.785/18 |
≤0.785/18 |
≤0.785/18 |
≤0.785/18 |
1.5×2Crimp contact arrangement and spec
|
Number of contact |
2 |
3 |
4 |
|
Male contact face view |
|
|
|
|
Rated current (A) |
10A |
10A |
5A |
|
Contact diameter |
|
|
|
|
Rated voltage(AC.V) |
500V |
500V |
500V |
|
Test voltage(AC.V)1 min |
1500V |
1500V |
1500V |
|
Contact resistance mΩ |
2.5 |
2.5 |
5 |
|
Insulation resistance mΩ |
2000 |
2000 |
2000 |
1.5×2-
