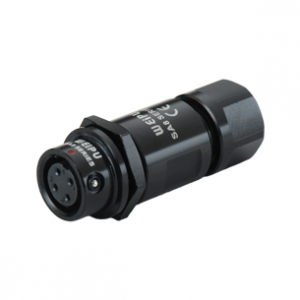

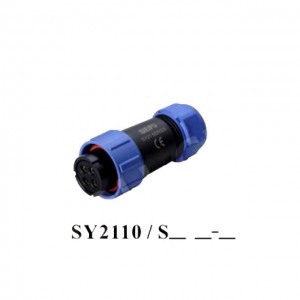

①Number of contact
②Cable outer diameter:Ⅰ:4.5-7mm Ⅱ:7-12mm
③1:solder, 2:screw,3:crimp
④Number of contact
③1:solder, 2:screw,3:crimp
⑤1:solder, 2:screw,3:crimp
Material and spec
| Material | Plastic |
| IP Rating | IP67 |
| Coupling Type | Bayonet Coupling |
| Shell | Nylon66,fire resistance:V-0 |
| Insert material | PPS max temperature 260℃，fire resistance:V-0 |
| Contact material | Brass with gold plating |
| Termination | Solder/Screw/Crimp |
| Cable outer diameter range | I：4.5-7mm II：7-12mm |
| Mating cycle | > 500 |
| Temperature range | -25℃~+85℃ |
| Insulation resistance MΩ | 2000 |
| Material | Plastic |
Contact arrangement and spec for solder/screw
|
Number of contact |
2 |
3 |
4 |
5 |
5B |
5C |
7 |
9 |
12 |
|
Male contact face view |
|
|
|
|
|
|
|
|
|
|
Rated current (A) |
30A |
30A |
30A |
30A |
5A、30A |
15A |
15A |
5A |
5A |
|
Contact diameter |
∅ 3×2 |
∅ 3×3 |
∅ 3×4 |
∅ 3×5 |
∅ 1×3 |
∅ 2×5 |
∅ 2×7 |
∅ 1×9 |
∅ 1×12 |
|
Termination |
solder |
solder |
solder |
solder |
solder |
solder |
solder |
solder |
solder |
|
Rated voltage(AC.V) |
500V |
500V |
500V |
500V |
500V |
500V |
500V |
500V |
400V |
|
Test voltage(AC.V) |
1500V |
1500V |
1500V |
1500V |
1500V |
1500V |
1500V |
1500V |
1200V |
|
Contact resistance mΩ |
1 |
1 |
1 |
1 |
5、1 |
2.5 |
2.5 |
5 |
5 |
|
Wire size mm² /AWG |
≤4.17/11 |
≤4.17/11 |
≤4.17/11 |
≤4.17/11 |
≤0.785/18 |
≤2/14 |
≤2/14 |
≤0.785/18 |
≤0.785/18 |
Crimp contact arrangement and spec
|
Number of contact |
2 |
3 |
5 |
7 |
8 |
|
Male contact face view |
|
|
|
|
|
|
Rated current (A) |
25A |
25A |
10A |
10A |
5A |
|
Contact diameter |
∅ 2.5×2 |
∅ 2.5×3 |
∅ 1.5×5 |
∅ 1.5×7 |
∅ 1×8 |
|
Rated voltage(AC.V) |
500V |
500V |
500V |
500V |
500V |
|
Test voltage(AC.V)1 min |
1500V |
1500V |
1500V |
1500V |
1500V |
|
Contact resistance mΩ |
1 |
1 |
2.5 |
2.5 |
5 |
|
Insulation resistance mΩ |
2000 |
2000 |
2000 |
2000 |
2000 |
