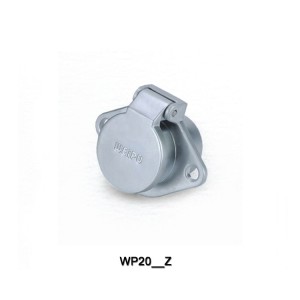

Receptacle:WP20 Z IP44

Receptacle:WP20 Z IP44 Featured Image

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

WP20 Z IP44

ssdv

Receptacle
Mate with TP, TK,TO
Z IP44

rt (1)

企业微信截图_15998771644547

rt (2)

Metal hose
Mate with Z
TP

rt (3)

Plastic clamping-nut
Mate with Z
TK IP55

rt (4)

PVC sleeve
Mate with Z
TO

Material and spec

Coupling Type	Bayonet
Shell	Nylon 66/Zinc alloy
Insert material	PPS ,max temperature 260℃
Contact material	Brass
Contact plating	Gold Plating
Termination	Solder:∅1mm,∅2mm,∅3mm contact Screw:∅3mm contact
Mating cycle	> 500
Temperature range	-40℃~+85℃

Contact arrangement and spec for solder/screw

Number of contact	2	3	4	5	5B	6	7	9	12
Male contact face view
Rated current (A)	30A	30A	30A	30A	5A、30A	5A、30A	15A	5A	5A
Contact diameter	∅ 3×2	∅ 3×3	∅ 3×4	∅ 3×5	∅ 1×3 ∅ 3×2	∅ 1×4 ∅ 3×2	∅ 2×7	∅ 1×9	∅ 1×12
Rated voltage(AC.V)	500V	500V	500V	500V	500V	500V	500V	500V	400V
Test voltage(AC.V) 1 min	1500V	1500V	1500V	1500V	1500V	1500V	1500V	1500V	1200V
Contact resistance mΩ	1	1	1	1	5、1	5、1	2.5	5	5
Insulation resistance MΩ	2000	2000	2000	2000	2000	2000	2000	2000	2000
Termination	solder screw	solder screw	solder screw	solder screw	solder screw		solder	solder	solder
Wire size mm² /AWG	≤4.17/11	≤4.17/11	≤4.17/11	≤4.17/11	≤0.785/18 ≤4.17/11	≤0.785/18 ≤4.17/11	≤2/14	≤0.785/18	≤0.785/18

Crimp contact arrangement and spec

Number of contact	2	3	5	7	8
Male contact face view
Rated current (A)	25A	25A	10A	10A	5A
Contact diameter	∅ 2.5×2	∅ 2.5×3	∅ 1.5×5	∅ 1.5×7	∅ 1×8
Rated voltage(AC.V)	500V	500V	500V	500V	500V
Test voltage(AC.V)1 min	1500V	1500V	1500V	1500V	1500V
Contact resistance mΩ	1	1	2.5	2.5	5
Insulation resistance mΩ	2000	2000	2000	2000	2000
